%% Matrix A,B,C

A=[100 0 -1;0 0.1 50;0.333 10 0];

B=[-1 0 10;1 1 0;0.1 -20 4];

C=eye(3);

K=[-3.47 20.2 49.3;3.7 0.0519 0.714;18.7 2.21 4.83];

cvx_begin sdp

variable S

variable P(3,3) symmetric

variable Q(3,3) symmetric

variable R(3,3) symmetric

variable d(3,3) symmetric

minimise(norm(S))

P >= 0;

B’*P+S’-R*K0== 0;

A’*P + P*A-(P*B+d)*K+Q==0;

Q > 0 ;

S > 0;

S’> 0;

R >= 0 ;

cvx_end

I need to implement above LMI using cvx, the codes I used are shown above but I am not getting correct final value.

Please help to correct the above

You haven’t implemented the model as shown.

You are missing the LMI: `[Q S;S'R] > 0`

But actually, CVX treats `>`

as `>=`

. So if you need strict inequality (i.e., positive definiteness), then you’ll need something like

`[Q S;S'R] - small_positive_number*eye(6) >= 0`

, where `small_positive_number`

is perhaps about `1e-5`

.

And you will need to declare `variable S(3,3)`

, not `variable S`

.

And remove `S > 0`

.

And you can omit `Q > 0`

and `R >= 0`

Also, you need `minimise(norm(S,'fro'))`

rather than the 2-norm which is used by default with `norm`

.

I’ll let you check to see whether I missed anything.

%% Matrix A,B,C

A=[100 0 -1;0 0.1 50;0.333 10 0];

B=[-1 0 10;1 1 0;0.1 -20 4];

C=eye(3);

K0=[-3.47 20.2 49.3;3.7 0.0519 0.714;18.7 2.21 4.83];

cvx_begin sdp

variable S(3,3) symmetric

variable P(3,3) symmetric

variable Q(3,3) symmetric

variable R(3,3) symmetric

variable d(3,3) symmetric

minimise(norm(S,‘fro’))

P >= 0;

B’*P+S’-R*K0== 0;

A’*P + P*A-(P*B+d)*K0+Q==0;
[Q S;S’ R] - 1e-5*eye(6) >= 0;

For this result is

Status: Inaccurate/Solved

Optimal value (cvx_optval): +9.02486e-05

Q =

```
1.9880 1.6727 2.4909
1.6727 4.0435 5.6830
2.4909 5.6830 9.2900
```

R

R =

```
0.0110 -0.2243 0.0116
```

-0.2243 6.5938 -1.3415

0.0116 -1.3415 0.6180

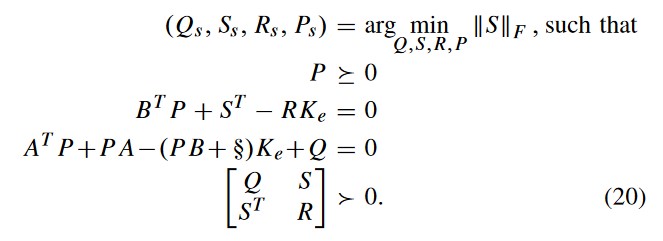

I am trying to implement one example in the paper “Solutions to the Inverse LQR Problem With Application to Biological Systems Analysis”. In this initial value for Q and R are estimated using the above LMI.

Answer given in the paper is

Q=

1.0e+03 *

```
0.0714 0.0964 0.0628
0.0964 0.3020 0.0086
0.0628 0.0086 1.5500
```

R=

R =

```
1.3300 -1.4900 -3.1900
```

-1.4900 387.0000 -77.0000

-3.1900 -77.0000 53.3000

I don’t believe `S`

should be declared to be symmetric.
